A private adaptation of the logseq-plantuml-plugin.

Go to file

Levi Neely 0f158023dd feat: inline rendering with click-to-edit - Render PlantUML diagrams inline (no Render button) - Hide child code block via CSS when viewing diagram - Click diagram to reveal code block and enter edit mode - Click away to re-render diagram automatically - Switch build from Parcel to esbuild (minified, 82KB vs 154KB) - Remove unused convert.ts		2026-07-10 12:31:41 +02:00
.github	Update publish.yml	2022-05-13 16:01:54 +08:00
screenshots	support plantuml	2022-05-13 13:47:28 +08:00
src	feat: inline rendering with click-to-edit	2026-07-10 12:31:41 +02:00
.gitignore	Added ability to use a local server	2022-04-11 12:41:15 +08:00
LICENSE.md	support plantuml	2022-05-13 13:47:28 +08:00
README.md	Update README.md	2022-05-14 10:24:44 +08:00
icon.png	support plantuml	2022-05-13 13:47:28 +08:00
package-lock.json	feat: inline rendering with click-to-edit	2026-07-10 12:31:41 +02:00
package.json	feat: inline rendering with click-to-edit	2026-07-10 12:31:41 +02:00
yarn.lock	support plantuml	2022-05-13 13:47:28 +08:00

Note: This project is forked from hkgnp/logseq-mermaid-plugin

Overview

The render server default is https://www.plantuml.com/plantuml/png, you can change to your self server by plugin settings.

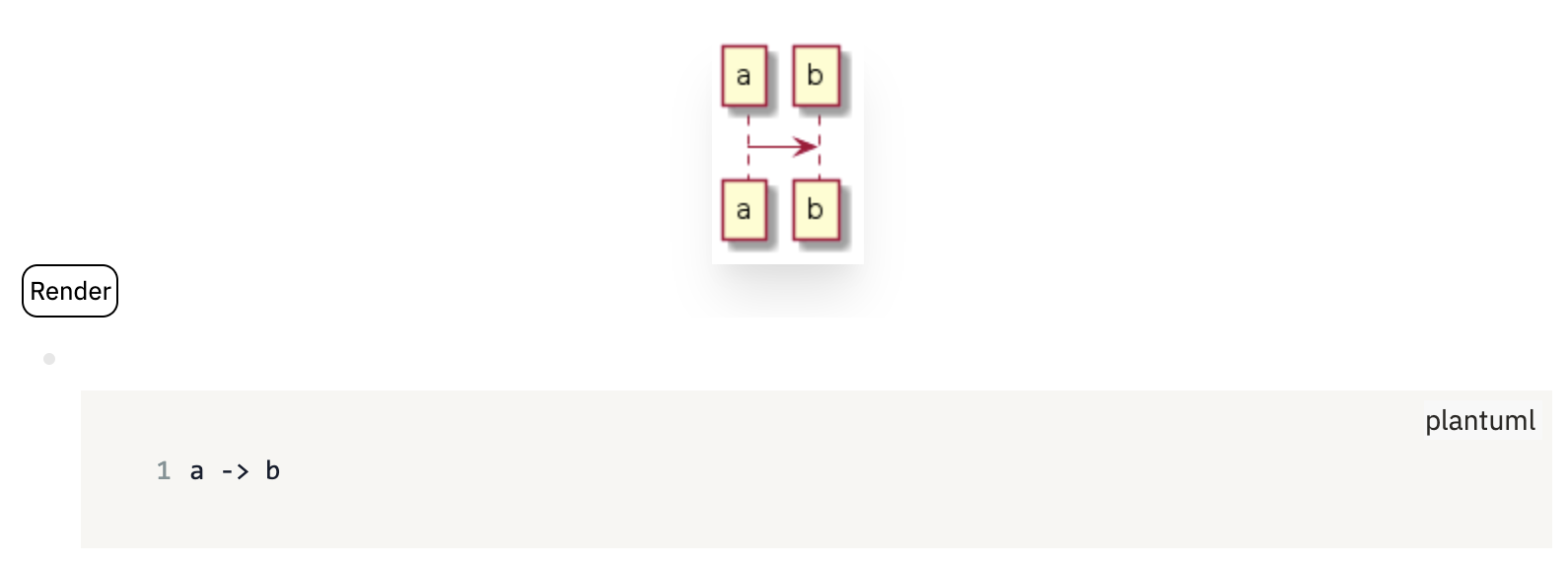

Screenshots:

Installation

If not available in the marketplace, download the latest release and manually load it into Logseq after unzipping.

To start, simply trigger it using /Draw plantuml diagram. Then add your plantuml syntax in the code block and click Render.
